Kev sib koom
Fiber ntau qhov muag ceev hloov tshiab hauv ntau cov fiber ntau sib txuas lus, suav nrog cov ntaub ntawv sib txuas lus, cov xov tooj sib txuas lus, thaj chaw hauv nroog, thiab thaj chaw dav dav. Txawm hais tias nyob rau hauv fiber ntau rau lub tsev (FTH) Kev thov, Cable Kev Sib Txuas Lus Sib Kis xws li Highmast cov ntaub ntawv sib kis ua si lub luag haujlwm tsis tseem ceeb.
Kev siv fiber ntau kho qhov muag ceev txuas hauv FTH
Fiber Optic Splicing tau muab faib ua kub yaj spicing thiab txias splicing.
Thermal fusion splicing yog siv cov fiber ntau ettic slicters spricers rau kev tsim kho, tab sis xav tau lub platform rau kev tsim kho, nyob thaj chaw loj. Tsis tas li ntawd, nws yog ib txoj kev tsim qauv siv nrog roj teeb muaj tsawg. Qhov zoo dua yog tias lub vuam poob yog me.
Txias fij yog kev siv cov fiber ntau cov txuas, uas yog qhov yooj yim ua haujlwm, tsis muaj kev tsim kho, tsis muaj kev tsim kho, thiab yooj yim nqa. Txoj kev poob kev poob yog cov loj, tab sis rau cov ftth systems, qhov yuav tsum tau ua rau cov kev ua kom zoo nkauj tsis muaj siab heev, yog li nws tau siv dav.
Kev qhia tshwj xeeb
|

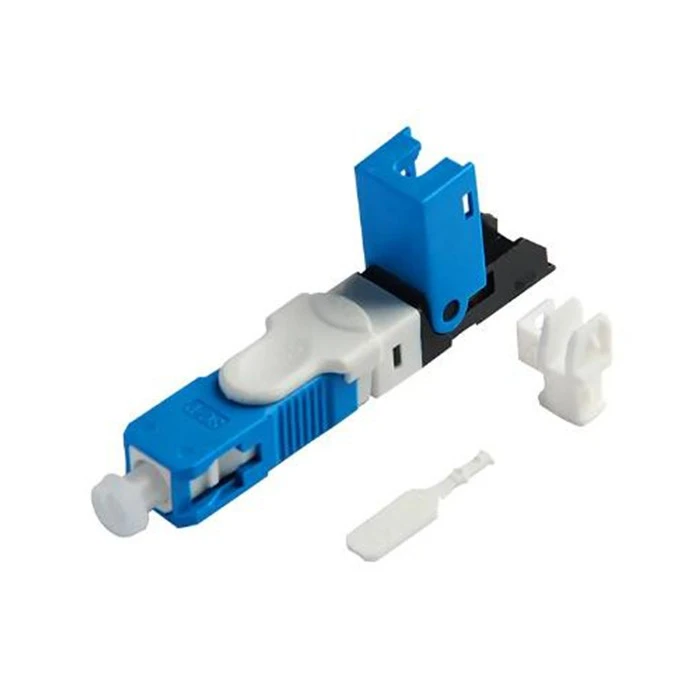

LC, SC, FC, ST, MTRJ, MBO Fiber Optical Ceev Txuas |
|||||
|
Chaw ua uas tsis tau haus |
Sw |
Lub hli |
|||
|
PC |
UPC |
AP |
PC |
||
|
Poob ntxig |
dB |
Tsawg dua los yog sib npaug rau 0.2 |
Tsawg dua los yog sib npaug rau 0.2 |
Tsawg dua los yog sib npaug rau 0.2 |
Tsawg dua los yog sib npaug rau 0.2 |
|
Rov qab poob |
dB |
Ntau dua los yog sib npaug rau 45 |
Ntau dua los yog sib npaug rau 50 |
Ntau dua los yog sib npaug rau 60 |
Ntau dua los yog sib npaug rau 30 |
|
Kev sib pauv |
dB |
Tsawg dua los yog sib npaug rau 0.2 |
|||
|
Kev rov ua dua |
dB |
Tsawg dua los yog sib npaug rau 0.2 |
|||
|
Yam ruaj khov |
Sij hawm |
>10000 |
|||
|
Kev khiav hauj lwm kub |
tiv kis |
-40~75 |
|||
|
Cia kub |
tiv kis |
-40~85 |
|||
Cov FAQ
Dab tsi yog qhov kev ua tau zoo yuav tsum rau fiber ntau dua tshiab txuas
1. Kev ua haujlwm kho qhov muag
Cov tseev kom muaj rau kev ua tau zoo ntawm kev ua tau zoo ntawm cov twj txuas fiber ntau tsuas yog suav nrog ob qhov tseem ceeb tshaj plaws ntawm kev poob siab thiab ploj rov qab. Kev nqus ntxig, tseem hu ua kev sib txuas ploj, hais txog qhov poob ntawm lub zog kho qhov muag zoo nyob rau hauv qhov link tshwm sim los ntawm kev qhia ntawm cov txuas. Tus me dua cov ntxig zog, qhov zoo dua, thiab feem ntau nws yuav tsum tsis pub tshaj 0.5db. Rov qab ploj yog hais txog kev muaj peev xwm ntawm kev sib txuas ntawm kev txuas ntawm lub zog kho qhov muag, thiab nws cov nqi raug tsim nyog yuav tsum tsis pub tsawg tshaj 25dB. Cov kev txuas siv siv hauv cov ntawv thov siv tau muaj cov kev kho tshwj xeeb polishing rau saum npoo ntawm cov pins, uas feem ntau tsis tsawg dua 45dB.
2. Interchangeabability thiab rov ua dua
Cov khoom siv fiber ntau estic yog universal passive Cheebtsam, thiab siv ntau lub sijhawm ntau dua nyob rau hauv ntau tsawg tshaj 0.2dB.
3. Tensile lub zog
Rau kev ua tau zoo ua fiber ntau txuas, feem ntau yuav tsum tau tias lawv lub zog tensile yuav tsum tsis pub tsawg tshaj 40n.
4. Kub
Feem ntau, fiber ntau optic connector yuav tsum muaj ua haujlwm zoo nyob rau ntawm qhov kub ntawm -40℃rau +70 degree.
5. Tus naj npawb ntawm cov kev nkag thiab tshem tawm
Tam sim no siv Fasal txuas tau muaj fiber ntau feem ntau yog muab ntsaws thiab tshem tawm ntau tshaj 1000 zaug.
