Nta
Qhov tsis - nws yog xim hlau qauv tsim kom muaj zoo tiv thaiv kev cuam tshuam xov tooj cua thiab hluav taws xob.

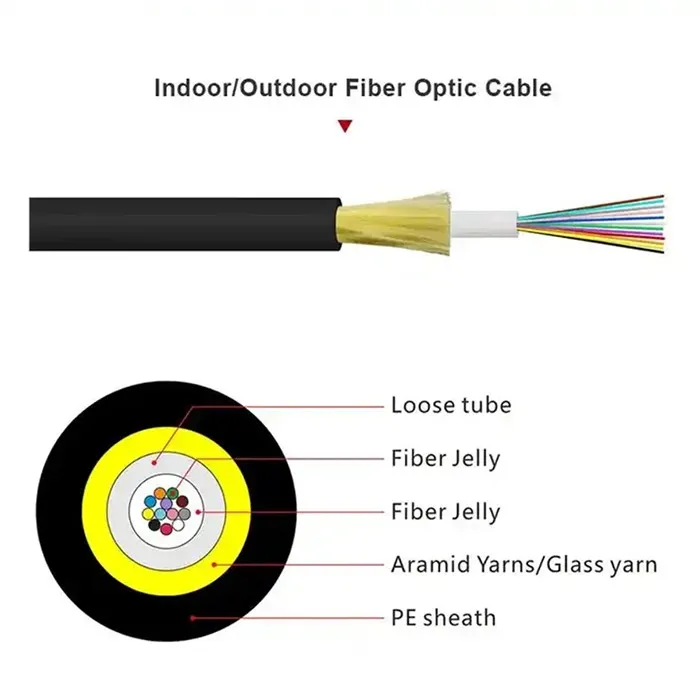

Tshwj xeeb tsim kev muab cov qauv fiber ntau
Aramid Cov Cheebtsam uas siv tau muab cov kev ua tau zoo tshaj plaws rau cov cable optical.
Lub raj xoob xoob puv nrog cov tshuaj pleev tshwj xeeb, ua kom muaj txiaj ntsig tag nrho cov dej tsis muaj dej ntawm lub tshuab kho tshiab.
Muaj kev muag khoom zoo.
Fiber Optic Reflectly ceev ceev yog high, Cable taub yog me me, ua rau nws qhov kev xaiv rau huab cua kev teeb tsa.
Daim Ntawv Thov Khoom
Siv cov khoom siv microleubule yog qhov tshwj xeeb rau hauv caj qaum tes hauj lwm, nkag mus rau cov network, thiab cov fiber ntau rau hauv tsev.
Kev qhia tshwj xeeb
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
|
Attenuation (+20 degree) |
@ 850NM |
|
|
Tsawg dua los yog sib npaug rau 3.0 dB / KM |
Tsawg dua los yog sib npaug rau 3.0 dB / KM |
|
A 1300nm |
|
|
Tsawg dua los yog sib npaug rau 1.0 dB / km |
Tsawg dua los yog sib npaug rau 1.0 dB / km |
|
|
@ 1310NM |
Tsawg dua los yog sib npaug rau 0.36 db / km |
Tsawg dua los yog sib npaug rau 0.40 db / km |
|
|
|
|
@ 1550Nm |
Tsawg dua los yog sib npaug rau 0.22 db / km |
Tsawg dua los yog sib npaug rau 0.23db / km |
|
|
|
|
Bandwidth (- qib) |
@ 850NM |
|
|
Ntau dua los yog sib npaug rau 500 MhzleMan |
Ntau dua los yog sib luag rau 200 Mhzhank Km |
|
A 1300nm |
|
|
Ntau dua los yog sib npaug rau 1000 mhzle. |
Ntau dua los yog sib npaug rau 600 MHzz. |
|
|
Suav aperture |
|
|
0.200 ± 0.015na |
0.275 ± 0.015na |
|
|
Kho qhov muag Cable Txiav Wavelength |
Tsawg dua los yog sib npaug rau 1260nm |
Tsawg dua los yog sib npaug rau 1480nm |
|
|
|
Cov qauv tsis sib xws
|
Fiber Optic Cable QAUV |
Tus naj npawb ntawm Optical Fiberers |
Cable taub lub voos |
Cable Luv Kg / Km |
Pub Tsis Muaj Zog Lub sij hawm ntev / Lub Sij Hawm LIS N |
Tso cai rau ntev - sij hawm / luv -}}}}}} flattening quab yuam N / 100mm |
Dabtsi yog khoov Radius Static / Dynamic Mm |
|
Dav hlau 2 ~ 12 |
2~12 |
4.2±0.3 |
12 |
60/150 |
300/1000 |
10D/20D |
|
Dav hlau 14 ~ 24 |
14~24 |
4.6±0.3 |
15 |
60/150 |
300/1000 |
10D/20D |
|
Dav hlau 26 ~ 36 |
26~36 |
5.1±0.3 |
18 |
60/150 |
300/1000 |
10D/20D |
|
Dav hlau 38 ~ 48 |
38~48 |
5.6±0.3 |
22 |
60/150 |
300/1000 |
10D/20D |
Cia thiab siv ntsuas kub: -40℃rau +70 degree
Cov FAQ
Qhov sib txawv ntawm qhov muag hluav taws xob - dab tsi yog qhov sib txawv ntawm cov khoom siv kho qhov muag
Cov yam ntxwv ntawm Cables:
Feem ntau, cov khoom lag luam nrog me me ntawm cov cores, cov khoom lag luam me me, thiab cov qauv yooj yim tau raug xa mus ua cov xov hlau. Cov khoom lag luam uas tsis muaj rwb thaiv tsev raug xa mus ua cov xov hlau liab qab, thaum lwm tus raug hu ua cables; Cov ntoo khaub lig loj {1} Ntu ntu ntawm tus neeg kos npe (ntau dua 6 cov hlau me me) yog hu ua xaim me me yog hu ua ib daim xaim xaim. Cov lus no yog qhov yooj yim thiab nkag siab yooj yim thiab nkag siab. Cov kab ke feem ntau muaj ntau dua 2 txheej ntawm rwb thaiv tsev, feem ntau yog cov kev ua kom zoo nkauj thiab muaj qhov ntev dua 100 meters. Cov xov hluav taws xob feem ntau yog ib qho ib qho- Txheej insulated, ib qho tseem ceeb, dov mus txog 100 metres nyob rau hauv ib coil, thiab wireless.
Oxygen Cabin Cov xov hlau feem ntau siv BV, BX, RV, RVV Series xaim. Ntawm lawv, bv {{- tooj liab tub ntxhais polyvinyl cenulated kub ntawm-15 degree, thiab ib qho kev ua haujlwm ntawm 500v AC thiab 1000V DC. Nws tuaj yeem kho sab hauv tsev lossis sab nraum zoov, thiab tuaj yeem tso rau hauv ib qho qhib lossis zais yam.
RVV - tooj liab core PVC one ins℃ins degree- kev tiv thaiv zoo li cas, nquag txav chaw thiab muaj xwm txheej. Qhov tseeb, tsis muaj ciam ciam ntawm "xaim" thiab "cables".
Rwb thaiv cov qauv hluav taws xob: VV sawv cev: polyvinyl chloride rwb thaiv tsev (v), steel sawb Kaizhuang (22) qauv nrog "ZR" lossis "FR" yog Nplaim - retardant clesles (xaim).
Qhov sib txawv ntawm cov xaim thiab cov cable optical
1. Muaj qhov sib txawv hauv cov ntaub ntawv. Cables yog ua los ntawm cov ntaub ntawv hlau (feem ntau tooj liab, txhuas) raws li collegers; Fiber ntau optic cable siv cov iav fibers raws li cov xa khoom xa tuaj.
2. Muaj qhov sib txawv ntawm kev sib kis cov paib. Lub cable transmits cov cim hluav taws xob. Fiber ntau cov kab muaj hluav taws xob xa pob tawg.
3. Muaj cov sib txawv hauv daim ntawv thov tau. Cables tam sim no feem ntau siv rau kev sib zog sib kis thiab tsawg -}} xaus xov cov ntaub ntawv kis (xws li xov tooj). Cov qoob loo fiber ntau siv tau siv rau cov ntaub ntawv kis.
